NeuStar Smooth Side-Wall Gravel Box
Hardox In My Body® certified, with a smooth outer sidewall, no cross members underneath and solid seam welds throughout.
Download Spec Sheet (PDF)The NeuStar Advantage
The NeuStar Smooth Side-Wall Gravel Box is Hardox In My Body® certified — assurance that it is built to standard using genuine Hardox® wear plate. Hardox 500 Tuf runs the floor, doghouse and tailgate liner, there are no cross members underneath the box, and solid seam welds inside the box and on the sills deliver superior clean-out, no floor washboarding and improved durability.
As an authorized NeuStar dealer, Petra Truck Equipment is proud to offer NeuStar products with professional installation, competitive pricing, and ongoing support. Our team ensures your NeuStar dump body is properly installed and configured for optimal performance.
Outstanding Features
Hardox In My Body®
Built with genuine Hardox® wear plate by a qualified member of SSAB’s certification program
No Cross Members
A smooth underside with no cross members for superior clean-out and no floor washboarding
Solid Seam Welds
Solid seam welded inside the box and on the sills rather than stitch welded
Hardox 500 Tuf Wear Surfaces
4.5mm Hardox 500 Tuf floor and doghouse, with the tailgate fully lined inside
Dimensions & Configuration

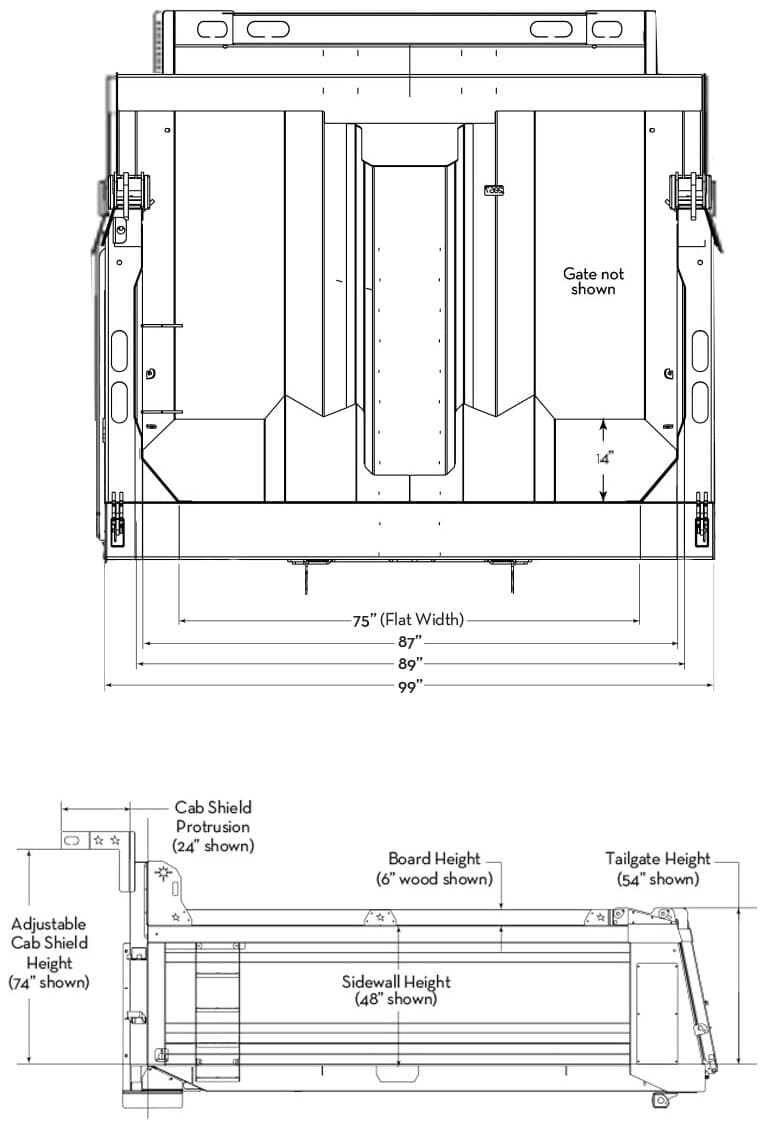

Representative dimensional drawing. Sidewall, board, tailgate and cab-shield heights shown are one configuration — yours is built to order.
- Model
- Smooth Side-Wall Gravel Box
- Manufacturer
- NeuStar Truck Body & Trailer Mfg.
- Length
- 12′–24′
- Width
- 96"
- Sidewalls
- 36" standard, 18"–60" available
- Side Boards
- 12" spruce
- Standard Wall Height
- 48" (36" sidewall + 12" board)
- Front Wall
- 60", 10 gauge, with cab shield
- Tailgate
- 48" three piece, to 60" available
- Tailgate Liner
- 4.5mm Hardox 500 Tuf, full inside
- Floor & Doghouse
- 4.5mm Hardox 500 Tuf
- Understructure
- Smooth — no cross members
Spec’ing a truck? Sidewall height, board height and tailgate style all change how the box loads and unloads, and cubic capacity follows from the final configuration. Petra sizes the body, hoist and chassis together so the finished unit is legal on your routes.
Smooth Side-Wall Advantages
Hardox In My Body® Certified
SSAB’s certification program confirms the box is manufactured using genuine Hardox® wear plate by a qualified program member.
Smooth Underside
With no cross members beneath the box there is less structure to pack with material, and the floor resists washboarding under load.
Solid Seam Welding
Welded with continuous solid seams inside the box and on the sills instead of stitch welds, creating a stronger, smoother surface that cleans out more easily.
Solid Tube Rear Bumper
A solid tube bumper runs across the rear of the body, adding structural strength where rear-end impacts and tailgate loads concentrate.
Built Around Hardox 500 Tuf
Hardox 500 Tuf floor and doghouse
Standard wall height (36" + 12" board)
Body lengths built to order
Standard Equipment
- 36" Hardox single-wall sidewalls with a clean, smooth outer face — 18"–60" available
- 12" spruce side boards — 48" standard wall height
- 60" front wall, 10 gauge, with cab shield
- 48" three-piece tailgate, fully lined inside with 4.5mm Hardox 500 Tuf — to 60" available
- Solid tube rear bumper and rear driver’s-side steps
- LED lighting on a sealed wire harness, red oval stop / tail / turn and white oval backup
Key Benefits
- Hardox 500 Tuf wear surfaces on the floor, doghouse and tailgate liner
- Smooth outer sidewall for a clean finished look and easy washdown
- No cross members underneath for superior clean-out
- Solid seam welds inside the box and on the sills
- Sandblasted, primed and finished in Axalta Imron Elite paint
- Also available as a box only, or fully upfitted by Petra
Body specifications only. Hoist, hydraulics, controls, chassis equipment and options such as tarp systems, high-lift gates and heated floors are spec’d and quoted by Petra to suit your truck — ask for a full build sheet.
Hardox In My Body® Certified
Hardox® 500 Tuf wear plate on the floor, doghouse and tailgate liner — certified by SSAB and built by a qualified program member.
NeuStar Design Excellence
Smooth Side-Wall
A clean outer sidewall that washes down easily and finishes sharp
Smooth Underside
No cross members beneath the box, so there is less structure to pack with material
Hardox 500 Tuf
Abrasion-resistant plate on the floor, doghouse and tailgate liner
Perfect for Gravel & Aggregate Operations
The flat floor and smooth, cross-member-free underside make this box well suited to gravel, crushed stone, sand and other aggregates — material releases cleanly and the body stays easy to wash out between loads.
Not Sure Which Brand Is Right for You?
Both Diamond and NeuStar offer exceptional flat floor dump bodies. Our expert team can help you compare features, specifications, and pricing to find the perfect match for your specific needs and budget.
Talk to Our ExpertsNeuStar Frequently Asked Questions
What makes the Smooth Side-Wall Box different from other gravel boxes?
Three things: the outer sidewall is smooth rather than ribbed, there are no cross members underneath the box, and it is solid seam welded inside the box and on the sills instead of stitch welded. Together those give superior clean-out, no floor washboarding and a stronger, easier-to-wash body. Hardox 500 Tuf is used where the wear happens — a 4.5mm floor and doghouse, and a tailgate lined full width inside.
What does Hardox In My Body® certification actually mean?
Hardox In My Body® is SSAB’s certification program for equipment built with genuine Hardox® wear plate. When you see the mark, the product was manufactured using Hardox wear plate by a qualified program member — so the steel in the body is verified, not just claimed.
What sizes does the Smooth Side-Wall Box come in?
Bodies are built from 12′ to 24′ long at 96" wide. The standard configuration is a 36" Hardox sidewall with a 12" spruce side board, giving a 48" wall height, a 60" 10-gauge front wall with cab shield, and a 48" three-piece tailgate. Sidewalls are available from 18" to 60", with tailgates to 60" to suit. Petra will size the body to your chassis and axle configuration.
Can I buy just the box, or does Petra handle the whole truck?
Either way. NeuStar offers the Smooth Side-Wall as a box only, and Petra can also handle the complete upfit — hoist, hydraulics, controls, tarp system and chassis equipment spec’d to suit your truck. Call us for a full build sheet.
Experience NeuStar Quality
Get competitive pricing and expert installation for the NeuStar Smooth Side-Wall Gravel Box.
