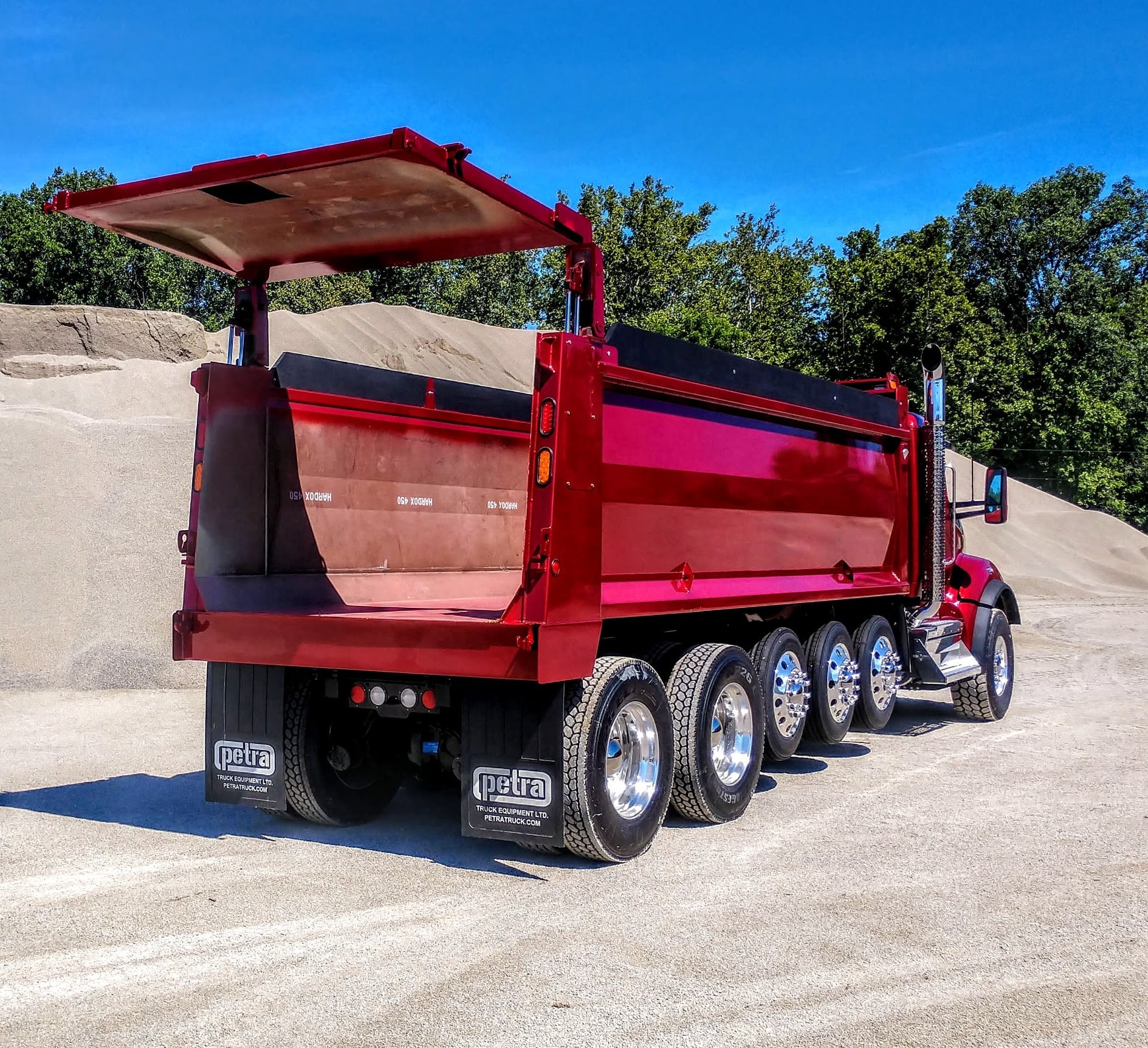

Diamond Model Flat Floor
Built to your spec by Brandon Manufacturing — choose the length, side height and steel grade for the work you do.
Why Choose the Diamond?
The Diamond is our custom-built flat floor line from Brandon Manufacturing. Rather than picking from a short list of fixed sizes, you specify the floor length, side and tailgate height, cab shield and longmembers — then choose the steel grade for each panel, from mild steel through hardened steel to Hardox® 500 Tuf.
Petra Truck Equipment provides expert installation, competitive pricing, and ongoing support for every Diamond dump body we install. Our certified technicians ensure proper installation and optimal performance for years of reliable service.
Key Features
Heavy-Duty Construction
Built with high-strength steel for maximum durability in tough conditions
Reinforced Design
Strategically reinforced high-stress areas for extended service life
Low Maintenance
Engineered for minimal maintenance requirements and easy serviceability
Industry Leader
Trusted by contractors and fleet operators across North America
Choose Your Steel
The Diamond is a custom build. Every panel can be specified in a different material and thickness, so you pay for wear resistance only where the body actually wears.
| Component | Material Options |
|---|---|
| Floor | Mild Steel, Hardened Steel or Hardox 500 Tuf |
| Sides | Mild Steel, Hardened Steel or Hardox 500 Tuf |
| Tailgate | Mild Steel, Hardened Steel or Hardox 500 Tuf |
| Front | Mild Steel, Hardened Steel or Hardox 500 Tuf |
| Longmembers | 3/16" or 1/4" Brinell 250 |
| Cab shield | 10 gauge or 3/16" Brinell 150 |
Hardox® 500 Tuf is the hardest option and the usual choice for floors in abrasive service. Petra will recommend a spec for your material.
Diamond Sizing
| Length | Typical Truck Configuration |
|---|---|
| 10' | Single axle / Tandem |
| 12' | Tandem |
| 14' | Tandem |
| 16' | Triaxle |
| 18' | Quadaxle |
| 20' | Quintaxle |
| 22' | Quintaxle |
Bodies are built from 10′ to 22′ in 6″ increments — the lengths above are common sizes, not the only ones. Cubic capacity follows from your final length, width and side height; axle configuration depends on loaded weight and your jurisdiction. Petra will size the body and chassis together.
Diamond Model Advanced Features
Reinforced Floor Design
Extra structural ribs and heavy-duty cross members for maximum durability
Premium Steel Construction
High-tensile strength steel with strategic reinforcement points
Customizable Options
Multiple tailgate, steel thickness, and configuration options
Technical Specifications
- Manufacturer
- Brandon Manufacturing
- Floor Design
- Flat Level Floor
- Body Lengths
- 10' to 22' (6" increments)
- Side Heights
- 24" to 66" (1" increments)
- Tailgate
- 24" to 66" (1" increments)
- Front Wall
- Customized to truck
- Longmembers
- 6", 8" or 10", formed or I-beam
- Cab Shield
- 12", 18", 24", 30", 36", 42" or 48"
Ideal Applications
- Heavy construction materials
- Asphalt and paving operations
- Aggregate and stone hauling
- Municipal and government contracts
- Mining and quarry operations
- General trucking applications
Built with Hardox Steel
Diamond Model dump bodies feature genuine Hardox steel floors for superior wear resistance and longer service life.
Diamond Design Highlights
Precision Engineering
Computer-aided design ensures optimal strength-to-weight ratio
Reinforced Structure
Strategic reinforcement in high-stress areas for longevity
Quality Materials
Premium steel construction meets or exceeds industry standards
Diamond Model Frequently Asked Questions
What sizes does the Diamond come in?
Floors are built from 10' to 22' in 6" increments, with sides and tailgate from 24" to 66" in 1" increments. The front wall is customized to your truck, and cab shields come in 12", 18", 24", 30", 36", 42" or 48". Because it is a custom build, you are not picking from a handful of fixed sizes.
What steel can I specify?
Floor, sides, tailgate and front are all available in different thicknesses of mild steel, hardened steel or Hardox 500 Tuf. Longmembers are 3/16" or 1/4" Brinell 250 in 6", 8" or 10", formed or I-beam. Cab shields are 10 gauge or 3/16" Brinell 150. You can mix grades, so the floor can be Hardox while lighter-duty panels are not.
How do I choose between mild, hardened and Hardox 500 Tuf?
It comes down to how abrasive your material is and how long you want the body to last. Hardox 500 Tuf is the hardest option and the usual choice for floors in aggregate, rock and demolition work. Mild steel is fine for lighter, less abrasive loads. Petra will recommend a spec based on what you actually haul.
What about warranty and support?
The body carries Brandon Manufacturing's warranty. Petra Truck Equipment provides installation warranty and ongoing service and parts support for every Diamond we install.
Ready to Upgrade to the Diamond Model?
Contact Petra Truck Equipment for expert consultation and competitive pricing on Diamond Model dump bodies.
