Elliptical Steel Dump Bodies
Curved floor design for maximum strength and durability. Built to handle the heaviest materials and toughest conditions.
Choose a Model
We proudly offer two industry-leading elliptical dump body brands, each providing exceptional weight savings and performance.

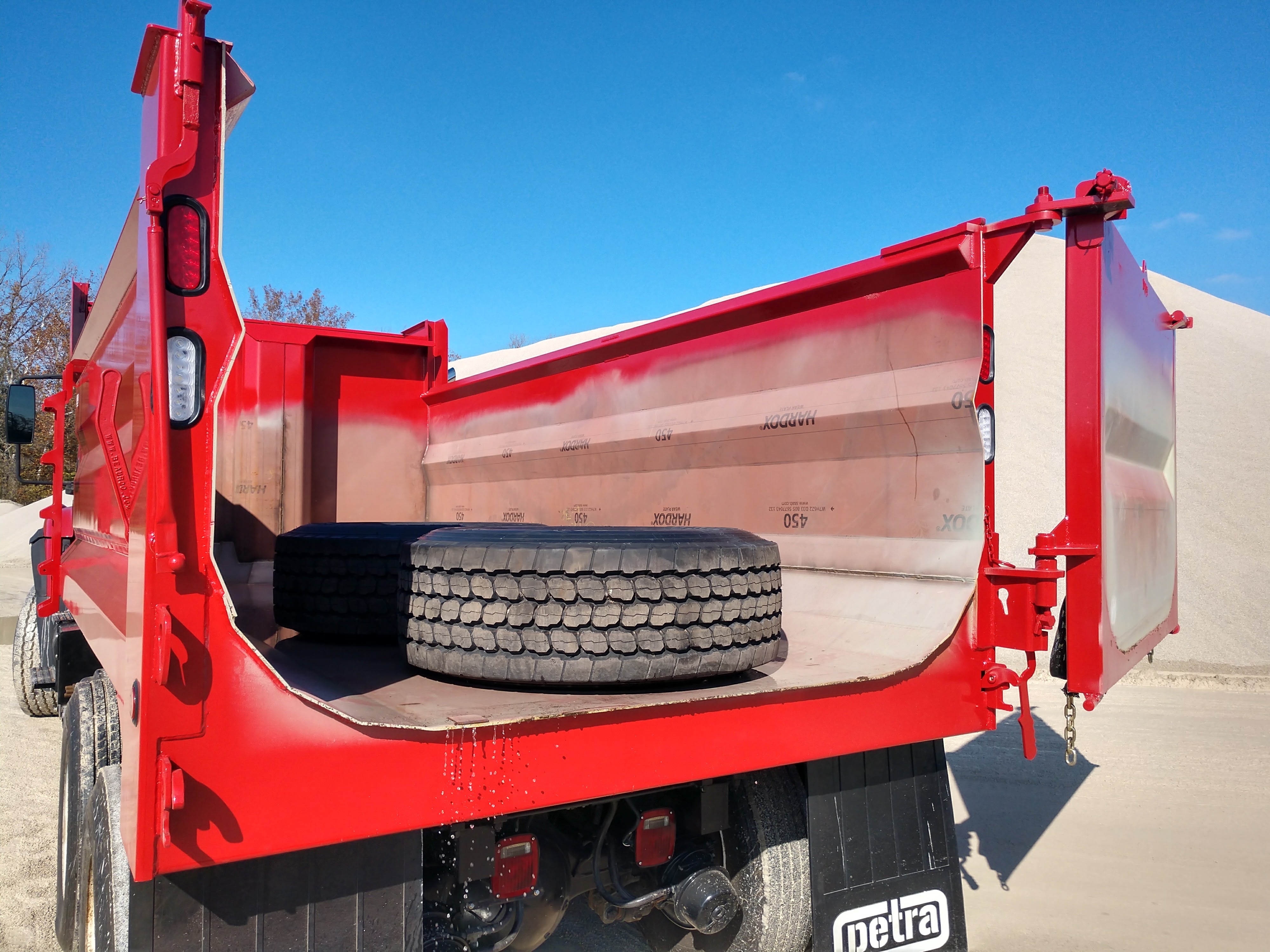

Diamond Elliptical
Premium Diamond elliptical dump bodies with a curved floor for a lighter body and clean, complete discharge.
- Lightweight curved-floor design
- Proven Diamond quality
- Superior structural integrity
NeuStar Radius Gravel Box
Smooth radius sidewalls with 45° floor corners and no hard corners to trap material. Hardox 500 on the floor, walls and tailgate.
- Hardox 500 floor & gate
- No intermediate cross members
- Solid-seam welding throughout
Common Features Across All Elliptical Models
Lightweight Design
Elliptical shape reduces weight while maintaining superior strength
Increased Payload
Lower tare weight allows for maximum legal payload capacity
Clean Material Flow
Curved design promotes smooth and complete material discharge
Hardox Construction
Premium Hardox steel throughout for unmatched durability
The Elliptical Advantage
Weight Savings
A curved floor carries its load in compression, so an elliptical body needs less internal bracing and fewer cross members than an equivalent flat floor model — which means less steel for the same strength.
Lower tare weight leaves more of your legal limit for payload. Exact savings depend on length, wall height and steel spec — ask Petra to weigh the two builds you are comparing.
Superior Design
The curved floor design provides excellent structural integrity while using less material, achieving the perfect balance of strength and weight.
Material flows naturally during dumping, with the elliptical shape promoting complete discharge and reducing cleanup time between loads.
Technical Specifications
- Floor Material
- Hardox 450 Steel
- Floor Design
- Elliptical Curved
- Side Wall Heights
- 48" to 72"
- Typical Lengths
- 12' - 24' (including half sizes)
- Standard Width
- 96" outside (8 feet)
- Weight vs Flat Floor
- Lighter — curved floor needs less bracing
- Axle Configurations
- Tandem, Triaxle, Quadaxle, Quintaxle
- Tailgate Options
- Barn Door, High Lift, Air Gate
Key Benefits
- Lighter than an equivalent flat floor body
- Increased payload capacity within legal weight limits
- Excellent material flow and complete discharge
- Lower center of gravity for improved stability
- Reduced fuel consumption due to lighter weight
- Curved floor promotes clean, complete discharge
Need Help Choosing the Right Steel Thickness?
View our comprehensive steel thickness guide with recommendations for different applications.
Why Do We Use Hardox Steel?
Learn why Hardox is the premium choice for dump body construction and how it compares to standard AR plate.
Ideal Applications
Volume Hauling
Aggregates, sand, gravel, and construction materials
Agricultural
Grain, feed, wood chips, and agricultural products
Recycling
Lightweight materials and recycling operations
Ready to Maximize Your Payload?
Contact our team for expert consultation on elliptical dump bodies. Increase your profitability today.
